Planning a bus wash bay at the depot

A SUNRISE gantry needs a concrete lane, rails at a 400 cm gauge, an electrical supply, water and compressed air. These are the published figures to plan the bay around.

Talk to Europe Makine

Sheet
04 / 04
Subject
Depot wash bay
Supplier
europemakine.com

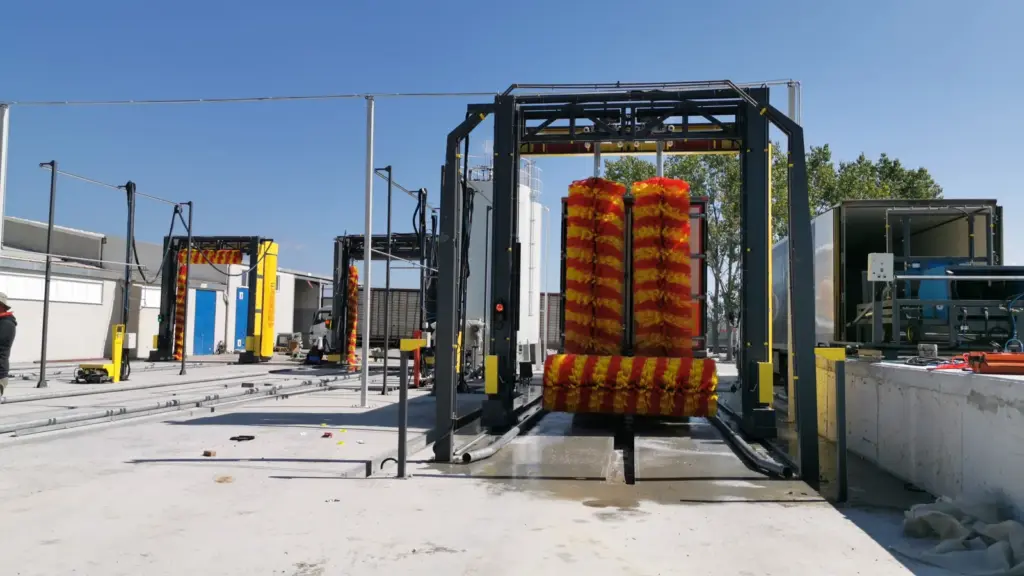

Wash gantry with red and yellow brushes on its rails at an outdoor depot, seen from behind, with two more gantries and white silos in the background

Utilities for one SUNRISE gantry

Voltage / frequency 380 V / 50 Hz
Water pressure 3.5-4 bar
Water requirement 70-80 lt/min
Water requirement, optional equipment 250 lt/min
Air pressure 6 bar
Air requirement 15 lt/min
Electricity 0.12-0.15 kWh/vehicle

Source: europemakine.com/systems/truck-bus-wash-sunrise/

In-bay automatic, plan view Plan of a wash bay. The bus drives in and stops. A gantry carrying side and top brushes runs on two rails along the bay, travelling forward and back over the parked bus. A control cabinet sits outside the bay wall. Bus, parked Gantry travel, forward and back Entry Exit Rails Gantry with side and top brushes Control cabinet
Fig. 1 Schematic of a gantry wash bay: a concrete lane, fixed rails at a 400 cm gauge and a chassis wash at the entrance.

Space in the bay

The gantry runs on fixed rails with a 400 cm gauge. The machine is 465 cm wide without its water shields, and each shield adds 14 cm.

Machine height is 510 cm for the W4000 and 560 cm for the W4700. An indoor bay has to clear that height along the full travel of the gantry.

Optional accessories fit inside the machine's own footprint. SUNRISE is modular, so adding equipment later does not take extra space in the bay.

Driver guidance

Steel router guide pipes, 3 inches in diameter, are fixed to the concrete floor to line the bus up with the gantry.

Two 24 VDC LED traffic lights tell the driver when to move: one at the start of the rails and one on the machine body. Red means the machine is running or off. Green means it is ready to wash.

Build and drive

Frames are A1 grade DKP steel, finished with electrostatic powder coating. Hot-dip galvanization is an option. Energy is transmitted by chain drive, which reduces the load on the gearbox and motor.

Standard build and site options

The utility figures above are for the standard SUNRISE build. Optional equipment, water recovery and cold-weather packages change the installed power and the water requirement, and Europe Makine quotes them per site.

Before the proforma, map the four services the bay needs: a concrete lane, an electrical supply, water and compressed air. Add the reinforced concrete substructure for the chassis wash at the lane entrance.

From depot layout to a running bay

  1. Send the depot details

    Depot layout, vehicles washed per day, tallest vehicle and widest vehicle.

  2. Proforma quotation

    Europe Makine prepares the proforma at no charge.

  3. Shipping

    The machine ships door to door.

  4. Installation

    Europe Makine installs every SUNRISE, free of charge.

  5. Warranty and service

    12-month warranty, backed by service technicians and spare parts held in Greenacres, Florida.

Questions and answers

How wide does the bay need to be for the machine?
The machine is 465 cm wide excluding water shields, and the shields add 14 cm on each side.
What groundwork is needed?
A concrete lane for the rails, with a reinforced concrete substructure where the chassis wash sits.
How much water does one gantry use?
The standard build needs 70-80 lt/min at 3.5-4 bar. Optional equipment needs 250 lt/min.
Does Europe Makine install the machine?
Yes. Installation is free, and the machine is shipped door to door.
What compressed air does the gantry need?
6 bar air pressure and 15 lt/min of air.
